Panasonic Transducer Corrugated Roof Roll Forming Machine With Chain Drive

Name: Panasonic Transducer Corrugated Roof Roll Forming Machine With Chain Drive
Brand: FAMOUS
Price: 1 USD

Brand Name : FAMOUS

Model Number : OWN

Certification : ISO9001:2008

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : Enquiry Us

Payment Terms : T/T,L/C

Supply Ability : 50 Sets/Year

Delivery Time : 2 Months

Packaging Details : Standard exported package

Contact Now

Panasonic Transducer Corrugated Roof Roll Forming Machine With Chain Drive

Core advantages:

Long life with competitive price
High working speed
Cutomized glazed tile shape
Accurated cutting and forming
Competitive price

Main technical specification:

Coil Material	Thickness	0.3-0.8mm
	Coil width	Custom-made
	Yield Strength	250-350Mpa
	Material	PPGI, Color Steel, GI.
Decoiler / Uncoiler	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
Roll Forming Machine	Forming Stations	13-24 Stations ( Depend on Profiles )
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	5.5KW
Cutting	Cutting type	Hydraulic cutting
	Cutting power	3KW
	Cutting Tolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control	PLC	PANASONIC Brand or Custom-made
	Inverter	YASKAWA Brand or Custom-made
	Touch screen	MCGS Brand or Custom-made
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

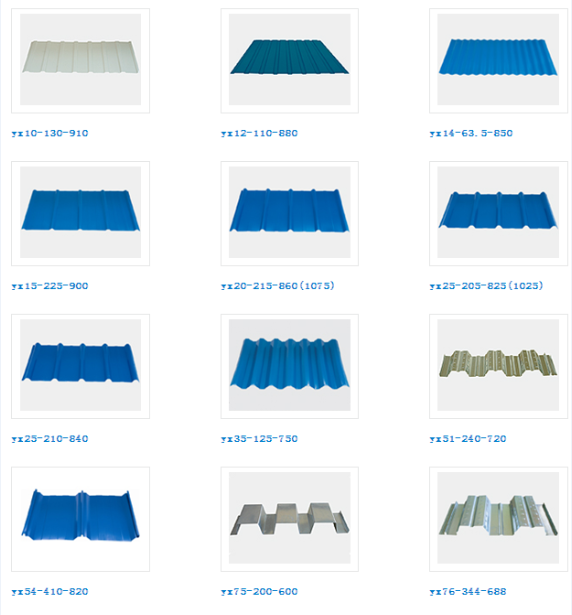

Corrugated Production:

YX51-380-760	YX14-65-850	YX25-205-820
YX15-225-900	YX76-344-688	YX12-100-880
YX130-300-600	YX35-125-750	YX35-280-840
YX4-102-918(1122)	YX12-110-880	YX10-125-875
YX28-207-828	YX25-210-840	YX34-205-1025
YX24183.3-1100	YX36-187.5-750	YX27-207-1035
YX41-250-750	YX41-313.5-940	YX2477-770

Applications:

Panasonic Transducer Corrugated Roof Roll Forming Machine With Chain Drive

Panasonic Transducer Corrugated Roof Roll Forming Machine With Chain Drive

Machine pictures:
