Steel Roof Glazed Tile Roofing Sheet Forming Machine With 18 Forming Stations

Brand Name : FAMOUS

Model Number : OWN

Certification : ISO9001:2008

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : USD 17900 per set or less

Payment Terms : T/T,L/C

Supply Ability : 50 Sets/Year

Delivery Time : 2 Months

Packaging Details : Standard exported package

Contact Now

Steel Roof Glazed Tile Roofing Sheet Forming Machine With 18 Forming Stations




Core advantages:

High working speed
Cutomized glazed tile shape
Accurated cutting and forming
Competitive price


Main technical specification:

Coil Material

Thickness

0.3-0.8mm

Coil width

Custom-made

Yield Strength

250-350Mpa

Material

PPGI, Color Steel, GI.

Decoiler / Uncoiler

Coil Width

Max. 1250mm

I.D

508-610mm

O.D

Max. 1500mm

Roll Forming    Machine

Forming Stations

13-24 Stations ( Depend on Profiles )

Roller material

45# steel, surface coated with 0.05mm      hard chrome

Diameter of shaft

76mm

Shaft material

High grade 45# steel

Drive type

Chain transmission

Forming speed

0-15m/min

Main power

5.5KW

Cutting

Cutting type

Hydraulic cutting

Cutting power

3KW

Cutting Tolerance

10m+/-1.5mm

Encoder

OMRON Brand

Electrical control

PLC

PANASONIC Brand or Custom-made

Inverter

YASKAWA Brand or Custom-made

Touch screen

MCGS Brand or Custom-made

Operation type

Touch screen & Button

Hydraulic Station

Hydraulic station

Famous Chinese brand

Runout Table

Table type

Simple nonpower type

Function

To support the finished panels



Corrugated Production:


YX51-380-760

YX14-65-850

YX25-205-820

YX15-225-900

YX76-344-688

YX12-100-880

YX130-300-600

YX35-125-750

YX35-280-840

YX4-102-918(1122)

YX12-110-880

YX10-125-875

YX28-207-828

YX25-210-840

YX34-205-1025

YX24183.3-1100

YX36-187.5-750

YX27-207-1035

YX41-250-750

YX41-313.5-940

YX2477-770

YX18-76.2-820

YX18-76.2-900

YX18-76.2-875

YX35-125-750

YX30-250-1000

YX18-76.2-900

YX45-150-900

YX28-195-780

YX25-210-840

























Applications:

Steel Roof Glazed Tile Roofing Sheet Forming Machine With 18 Forming Stations

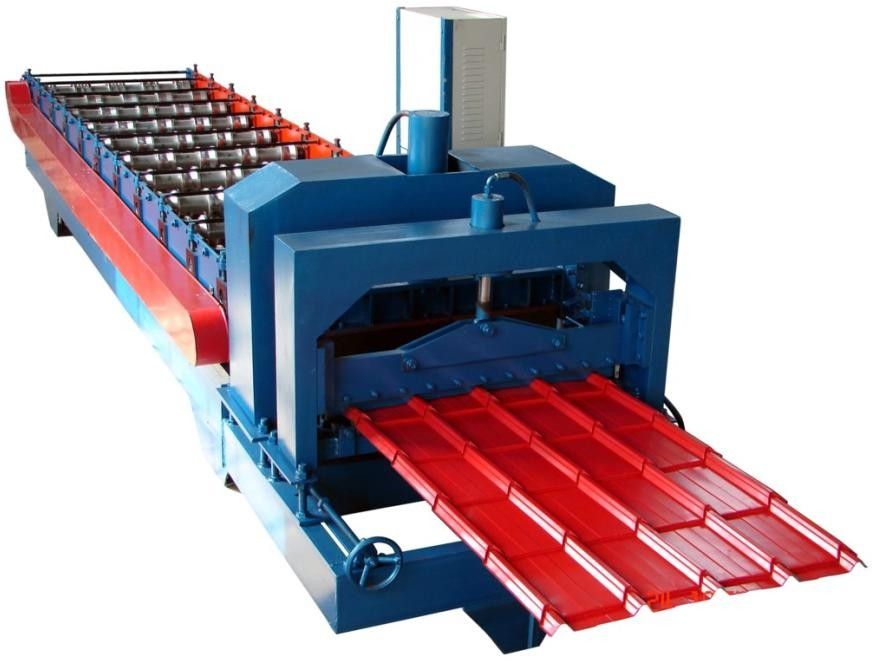

Machine pictures:

Steel Roof Glazed Tile Roofing Sheet Forming Machine With 18 Forming Stations

Steel Roof Glazed Tile Roofing Sheet Forming Machine With 18 Forming Stations

Steel Roof Glazed Tile Roofing Sheet Forming Machine With 18 Forming Stations
