Name: 15KW Hat Channel Cold Rolling Machine With Cr 12 Blade Hydraulic Cutting
Brand: FAMOUS
Price: 46280 USD

Brand Name : FAMOUS

Model Number : OWN

Certification : ISO9001:2008

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : USD 46280 per set

Payment Terms : T/T,L/C

Supply Ability : 50 Sets/Year

Delivery Time : 2 Months

Packaging Details : Standard exported package

Product Name : C Z purlin roll forming machine

Working speed : 10-25m/min

Main motor : 15KW

Hydraulic pressure : 15-20MPa

Contact Now

15KW Hat Channel Cold Rolling Machine With Cr 12 Blade Hydraulic Cutting

Core advantages:

Full-solid roller with excellent heat-treatment mould steel

High working speed

Accurate forming shape with little furr

Easy Auto-matic Operation

Technological process:

De-coiling---feeding---Punching---cutting---roll forming---Out table

Specification Details:

Coil Material	Thickness	1.5-3.omm
	Coil width	Custom-made
	Yield Strength	250-350Mpa
	Material	GI. Carbon Steel
Decoiler / Uncoiler	Coil Width	Max. 600mm
	I.D	508-610mm
	O.D	Max. 1500mm
Pinch Feeding & Leveling	Feeding roller	4 Rollers
Pinch Feeding & Leveling	Leveling roller	7 Rollers ( upper 3 rollers, bottom 4 rollers )
Punching	Punching type	Hydraulic Punching
Punching	Punching die	Cr12Mov, quenched, HRC58-62
Roll Forming Machine	Forming stations	14 Stations ( Depend on Profiles )
	Roller material	GCr15 steel, HRC58-62
	Diameter of shaft	80mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	15KW
Cutting	Cutting type	Hydraulic cutting
	Cutting blade	Cr12Mov, quenched
	Cutting Tolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control	PLC	PANASONIC Brand or Custom-made
	Inverter	YASKAWA Brand or Custom-made
	Touch screen	MCGS Brand or Custom-made
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic Station	Hydraulic Power	7.5KW
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

Main components:

Application:

15KW Hat Channel Cold Rolling Machine With Cr 12 Blade Hydraulic Cutting

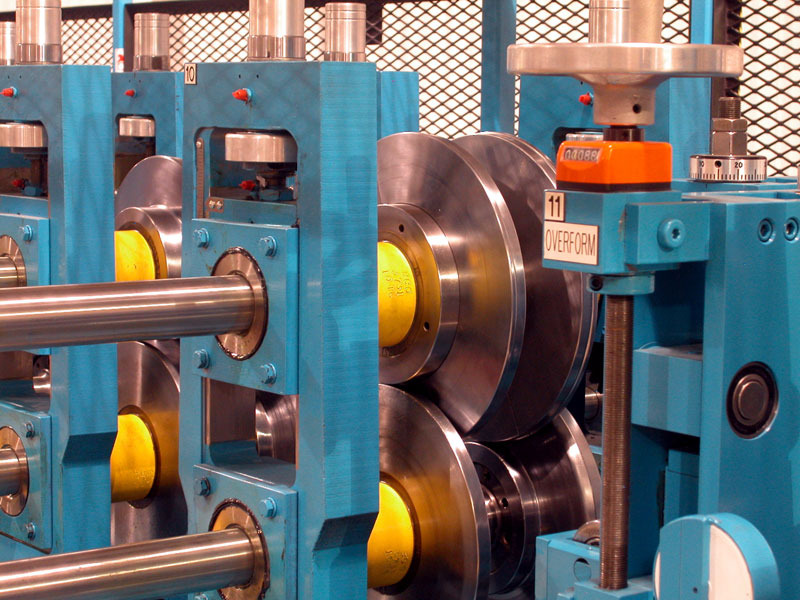

Machine Pictures:

15KW Hat Channel Cold Rolling Machine With Cr 12 Blade Hydraulic Cutting
